Double drum mobile asphalt

MOBILE ASPHALT PLANT (TSD Series)

Mobile Plant

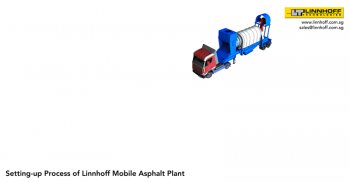

LINNHOFF mobile phone Screen Drum asphalt mixing plant offers the reply to needs of pavement contractors to shift to brand-new work web sites throughout every season. Fundamental plant includes four semi-trailers. Full plant set up is performed within seven days.

Benefits:

  • Easier Transportation.
  • Ease of Installation and setup.
  • Easier Dismantling and Demobilization.
  • No tangible basis needed.
  • No Heavy Lifting gear required at web site.
  • In a position to produce Hot Mix Asphalt within per week.
  • The Linnhoff Cellphone Screen Drum Asphalt Plant along with its unique complex design ensures several benefits.

Cellphone Cool Feed Hoppers

Mobile Phone Screen Drum

Mobile phone Weighing & Mixing Product

Mobile Bag Filter & Control Cabin

Extraordinary Properties :

  • Dual-purpose Screen Drum
    Compact design drum can be used for drying and assessment. Heat from inner drum is radiated on external aggregates while becoming screened. Therefore ensuring 100per cent dryness of most aggregates.
  • No Vibrating Screen
    Energy savings in gasoline because of reduced aggregate road traveled - minimal heat loss resulting in lower fuel consumption.
  • No Hot Elevator
    Zero-maintenance as no chains, sprockets, extra motor and buckets are involved.
  • High Quality Combine
    High quality mix is accomplished through integration of four elements.
  • Screening
    Testing area provides efficient sorting of aggregates.
  • Evaluating
    Correct weighers achieving around +/- 0.2% of the desired body weight for Bitumen and accuracy all the way to +/- 1per cent of desired fat for Aggregate. Blending - sturdy mixer provides comprehensive blending to achieve homogeneous mix in minimal 12 seconds per group.
  • Temperature Control
    Hot mineral and bitumen temperatures tend to be assessed and controlled by PLC to achieve the desired production worth.

Model TSD1000 TSD1500 TSD2000 Capacity* 60-80 TPH 90-100 TPH 120-160 TPH
Source: linnhoff.com.sg
