Large Equipment

September 17, 2023
Large equipment 1 after

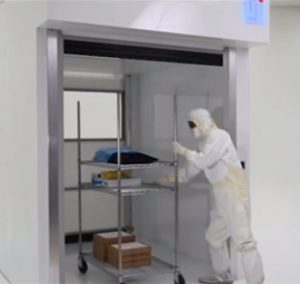

High-speed roll-up door for transferring personnel or big gear into ISO-rated areas.Pass-through chambers improve workflow by giving personnel a fast, efficient way to transfer things into, and out of, spaces with different ISO reviews. Services save man-hours and expenditure by preventing time-consuming gowning. Just how else can pass-through chambers help the lab’s bottom line?

High-speed roll-up cleanroom doorways for quickly, clean transfer of workers and enormous equipment (using pallet jacks, hand vehicles or casters for transportation) are generally offered by Terra Universal. New from the frontrunner in standard cleanrooms, but is the identical space-saving home configured as a pass-through chamber. A touch-screen control panel enables automatic push-button opening and closing of roll-up doorways on either side. Transfer of large or unwieldy gear or products in-and-out for the cleanroom becomes quicker and simpler.

Doors with a roll-up design eliminate the embarrassing maneuvering of hefty gear around swing doors, and eradicate horizontal space demands of sliding doors. Roll-up doors retract cleanly into a top-panel storage space, keeping important flooring and surfaces.

Terra’s initial aluminum roll-up home pass-through is created with segmented door panels that moves up into a roof bay. The new pass-through design utilizes lightweight, versatile vinyl fabric that may be retracted and deployed way more rapidly than aluminum slats. An individual retraction cycle takes less than four moments to accomplish, together with lightweight door locations a lot fewer demands on the engine. An aluminum door roll-up pass-through is durable and trustworthy, but issues may arise in facilities with high-frequency transfer requirements. When cleanroom operators have a higher-volume of cargo load or equipment to transfer, the high-speed design permits all of them the capability to do this swiftly and effortlessly.

Is it clean?

Yes. The entranceway is composed of chemical-resistant vinyl fabric and functions a flexible obvious PVC viewing window. It may be effortlessly cleaned down and won’t slough. The chamber framework is fabricated off a powder-coated steel internal and exterior layer, that will be smooth also super easy to wash. All moving components, engines and electronics are saved away in an isolated compartment, controlling dirt also contaminants. The doors’ paths haven't any moving components and tend to be able to be rapidly wiped down and sanitized. With an electrical interlock that prevents both doors from starting as well, the High-Speed Roll-Up Door Pass-Through won’t compromise the hygiene score associated with cleanroom.

Space-saving, light textile door is neat and fast!

Can it be safe?

Yes! The newest high-speed roll-up home comes standard with a myriad of security features, like the aluminum roll-up door. First, each door features some photoelectric sensors which use an infrared (IR) ray crossed between them to identify any obstructions. If beam is disrupted, the entranceway won't shut upon activation; when it is tripped while currently closing, the doorway will minimize and retract back in the roof. Also, becoming made of a soft, lightweight plastic features advantages because if the door previously makes contact, damage will likely to be avoided. The soft fabric will avoid problems for workers and equipment.

Just like the aluminum door version, this high-speed pass-through includes bypass, lockdown, and crisis stop features. It instantly retracts regarding power loss. “Bypass, ” as its name indicates, circumvents the digital interlock permitting both doors to open simultaneously for upkeep, cleaning or placement of extremely huge gear. “Lockdown” shuts both doors as a security measure, additionally the crisis stop locks the doors available.

With an optional air-curtain attachment, the pass-through serves as a significant device in efficient, protected and hygienic cleanroom operation. Personnel not should be held up by bottle-necking pass-through chambers. A cleanroom utilizing the high-speed Roll-Up Door Pass-Through can process workflow faster and cleaner than prior to.
