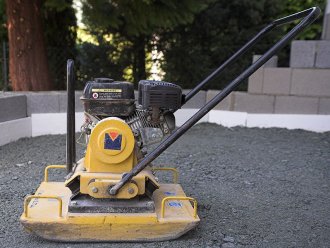

Vibratory plate compactor instanceSoil and asphalt compactors compress soil, asphalt, crushed aggregates or landfill trash. These devices range from tiny walk-behind or pull-utility rollers, rammer compactors, plate compactors, and machine mounted hydraulic compactors to big, driven, roller automobiles. They are also referred to as roadway rollers or steamrollers.

Types

Hydraulic compactors tend to be installed on hydraulically-powered equipment such excavators and backhoes. Frequently referred to as vibratory compactors, these machines are used for soil and product compaction in trenching, road restoration, and web site preparation. T
hey provide large impulse power to compact the aggregate by utilization of an oscillating hydraulic motor. Rubber isolators are used to sequester the hydraulic motor and base compactor dish from mounting bracket to increase the vitality moved through the compactor dish.

Rammer/tamping compactors and vibratory plate compactors tend to be hand-controlled compactors utilized for smaller jobs or where space is restricted. It works by aggressively using consecutive effects on surface for the soil in order to level it. Rammers and plate compactors are created to compact free grounds and gravel to stop deciding also to offer a strong, solid base for the keeping of footings, tangible pieces, fundamentals, and pipeline works. These compactors is powered by electric or fuel engines and generally are available with multiple vibratory soil plates sizes.

Vibrating combination rollerRoller compactors are large, driven automobiles obtainable in numerous designs for compacting soil and asphalt on huge jobs. Some large roller compactors tend to be specifically designed for compacting trash at landfills.

Grid rollers have actually a cylindrical, hefty steel
surface composed of an array taverns forming a grid with square holes. While fairly lightweight, the compaction energy are increased by the addition of size, particularly tangible blocks. Grid rollers offer large contact force but small kneading activity and are also suited to compacting coarse soils.

A smooth-wheeled roller is a big, driven vehicle that consist of one large steel drum in front as well as 2 steel drums from the back; those with one drum on the front and rear are called a combination roller. Smooth-wheeled rollers are available with a vibrating drum that allow for greater compaction depth. They are most suitable for rolling weaker aggregates, proof rolling subgrades, and compacting asphalt.

Pneumatic tire rollers are big, driven automobiles which have rubberized tires on both axles. The tires are staggered for compacting soil levels with uniform pressure throughout the width of roller. These rollers compact both fine-grained and non-cohesive soils. Pneumatic tire rollers will also be utilized in pavement subgrade work.

Tamping rollers and sheep base rollers have many circular or rectangular shaped knobs on each wheel or drum. Such rollers might be dedicated compacting automobiles or pull-behind attachments. The primary difference between the two devices could be the setup for the knobs for each roller. Sheep base roller knobs raise the subsurface product to the top by penetrating through top surface to lift a lowered level into the soil area, leaving a fluffed result. Tamping rollers have knobs offering a concentrated compressive load to basically secure the surface whilst compacts and travels over it. Tamper rollers work at greater speeds, and since they are employed for spreading and compacting they are often built with a spreading blade.

Source: www.globalspec.com
