Measuring a Pavement Job.

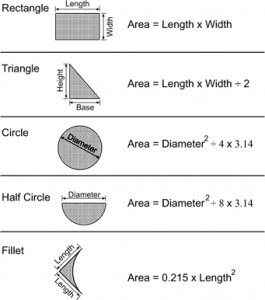

To determine the number of asphalt you will need for a paving work you need to understand the region becoming paved. This might be simple if location to be paved is square, rectangular or constant width of road. But that is rarely the situation since there could be planters in the region becoming paved, the width associated with roadway can vary greatly or you can find cul-de-sacs. This might appear to be impossible in many cases, but by dividing the pavement area into quick geometric shapes and including and subtracting these places the area is paved could be quickly determined. Listed here are fundamental treatments for calculating the region various geometric forms.
Lets consider the parking area in Figure 1, simply because they frequently have numerous features that complicate the calculation of area.
When you initially look at this it may look difficult as it is not a square, triangle or group. But is a mixture of squares triangles and groups as can be viewed in Figure 2.
By dividing a task into these easy shapes now you can effortlessly determine the area to-be paved.
Region A is a rectangle 100'×100' = 10, 000 sqft
Area B is a triangle 30'×100'÷2 = 1, 500 sqft
Area C is a rectangle 20'×120' = 2, 400 sqft
Location D is a circle 702 ÷ 4 ×3.14 = (70×70) ÷ 4 ×3.14 = 3, 846.5 square feet.
To determine the total part of paving all we have kept to-do is include areas as well as one exemption, the planters in the exact middle of the parking area. All we must do let me reveal calculate the area of this planters and subtract that area through the amount of others areas. But i am exhausted now thus I leaves the calculation associated with planter areas your responsibility. Just remember the planter places basically rectangles with semi-circles at each end.
For that reason, the full total paved area is:
10, 000 + 1, 500 + 2400 +3846.5 - (Planter Area) = 17, 257 sqft.
okay, I did determine the planter location, i recently desired that have a go at this. In addition rounded off to the closest whole number. It is all reliability you will probably previously need on a paving work.
You may notice that you will find little places around the curb returns in the cul-de-sac that have been perhaps not computed. In this instance areas tend to be tiny and won't make a big change into the total areas. For those who have numerous places similar to this on a project it could probably be best to draw the region to measure on graph report and calculate the region by counting the sheer number of squares and multiplying how many squares by the part of each square. As An Example if you drew the region at a scale of 1"=20' additionally the graph paper was split into 0.10" increments each square will have a place of 4 square feet (2×2). If you counted 20 squares, the full total location will be 80 sqft (20×4).
Figure 3 illustrates a good example of this. In this situation you will find around 20 squares. One of several tips should combine limited squares. Like if 3/4 of just one square is included in the area and 1/4 of some other square is also included in the area they may be combined and counted as the full square.
Figure 1: Graph Paper Way Of Deciding Location
Now you have the location determined, you next need certainly to calculate the amounts. Volumes are specified by body weight (tons) or volume (cubic yards). No matter how it is specified could first need certainly to determine the quantity. Amount is straightforward to determine since it is merely Region × Thickness. One of many tips in computing volume is to always utilize exactly the same dimension. For that reason, when we assess the location in square feet we need to transform thickness dimension to feet also. For example if you should be putting 6" of aggregate base the depth would be changed into:
6"÷12"/foot = 0.5 legs.
To calculate the amount we merely boost this thickness by the area previously computed.
Amount = Area × Thickness = (17, 257 square ft.) × (0.5 feet) = 8628.5 cubic ft.
Aggregate base alongside product tend to be specified or purchased by the cubic lawn; therefore, you'll want to transform cubic foot to cubic yards. Since there are 27 cubic feet per cubic lawn (3'/yard × 3'/yard × 3'/yard) you'll need certainly to divide the cubic base volume by 27.
Amount = 8628.5 cubic ft. ÷ 27 cubic ft/cubic yd. = 320 cubic yds.
To determine the weight of product required for a task you need to know the compacted thickness of this material. Density is the fat of material per volume. For instance weight per cubic foot. The density of Hot Mix Asphalt (HMA) does vary dependent on combine proportions and sort of aggregate. Unless you understand the in-place thickness of mixes you use pose a question to your provider.
To look for the fat of product multiply the amount by the thickness of product:
Body Weight = Volume × Density
Using the earlier example and assuming an HMA thickness of 145 pounds per cubic foot (pcf) and a thickness of 4" we'd do listed here computations.
1 Volume = 17, 257 sq. ft.× (4"÷12"/ft) = 5, 752 cu. ft.
2 Weight = 5, 752 cu. ft. × 145 pcf = 834, 040 pounds.
3 Convert to tons = 834, 040 pounds. ÷ 2, 000 lbs/ton = 417 tons
Today it is your consider decide to try your abilities. With the paving location in Figure 2, determine the cubic yards of aggregate base and tons of HMA needed assuming these.
1 Areas A & B are to be paved using 4" of Aggregate Base and 3" of HMA.)
2 Areas C & D can be paved using 6" of Aggregate Base and 4" of HMA.
A note about calculating areas of roadways with curves
When determining the location of a roadway with a bend it is important that length be calculated across the centerline of this road. As a result the area is merely along the arc across the centerline times the width.
